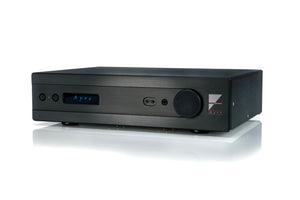

Ayre KX-8 Preamplifier
Note: Due to fluctuating tarrifs, the price shown may not be accurate. Please contact us for verification before making an online purchase.
Open box. As new!!!
Features
Ayre’s Exclusive Continuously Variable Gain Transimpedance (CVGT) volume control
Zero-Feedback, Fully-Balanced Discrete Circuitry
Ayre’s Diamond Output Stage
Ayre’s Exclusive Equilock Gain Stage
Linear Analog Power Supply
High-Speed Circuit Board Material
Analog Inputs:
(2) Balanced
(3) Single Ended
Optional DAC:
ESS ES9038Q2M DAC chip
Xilinx Spartan FPGA
Ayre’s Asynchronous S/PDIF input
Ayre custom digital clock
Ayre’s Minimum Phase digital filter
Single-pass 16x oversampling
AyreLink Communication Trigger System
Specifications
Maximum Input Level
4 V rms – unbalanced inputs
8 V rms – balanced inputs
Output Level
4 V RMS – Balanced Outputs
2 V RMS – Single Ended Outputs
Gain
Variable gain to match the required output level of the system without the need for attenuation.
Input Impedance
1 MΩ unbalanced inputs
2 MΩ balanced inputs (1 MΩ per phase)
XLR Input Polarity
Pin 1 = Ground
Pin 2 = Non-inverting (Positive)
Pin 3 = Inverting (Negative)
Frequency Response
DC – 250 kHz
Up to six digital inputs:
Ethernet, Asynchronous USB,
AES/EBU, S/PDIF, Optical (2)
Sample Rates
Optical/SPDIF/AESEBU: 44.1, 48, 88.2, 96, 176.4, 192 kHz
PCM 16, 20, 24 bits
DSD64 (as DoP)
USB2:
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
Bit Depth PCM : 16, 20, 24
DSD64, DSD128, DSD256, DSD512 RAW
Net2:
Sample Rates : 44.1, 48, 88.2, 96, 176.4, 192, 384kHz
BIT Depth : PCM 16, 20, 24
DSD64, DSD128 (as DoP)
Tidal Connect Enabled
JPLAY Certified
ROON Certified *Net1*
Power Consumption
40 watts in operating mode
60 watts in operating mode (volume control active)
Dimensions
17.25″ W x 13.00″ D x 4.5″ H
(44cm x 33cm x 11.5cm)
Weight
12.5 pounds (5.7 kg)
